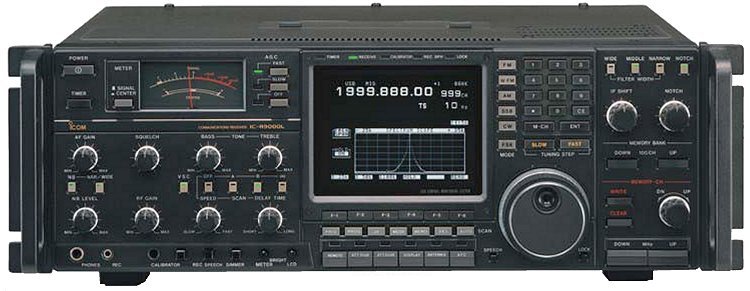

Icom IC-R9000L
| Type:
|
HF/VHF/UHF Receiver/Scanner |
| Frequency Range: |
0.1-1999.8 MHz |
| Modes: |
AM/FM/WFM/SSB/CW |
| Sensitivity: |
N/A |
| Selectivity: |
N/A |
| Image rejection: |
N/A |
| Voltage: |
Mains or 13.8 VDC |
| Current Drain: |
? |
| Aerial Input: |
50 ohms, 1 * SO-239, 2 * N-type, 1 * RCA/Phono |
| Dimensions (W*H*D): |
424*150*365 mm |
| Weight: |
20 Kg |
| Manufactured: |
199x-20xx |
| Other: |
Same as model E, but with color LCD instead. 1000 memories |
| Related Documents: |
User Manual (7.3 MB)
Service manual (47.0 MB) |
 |
